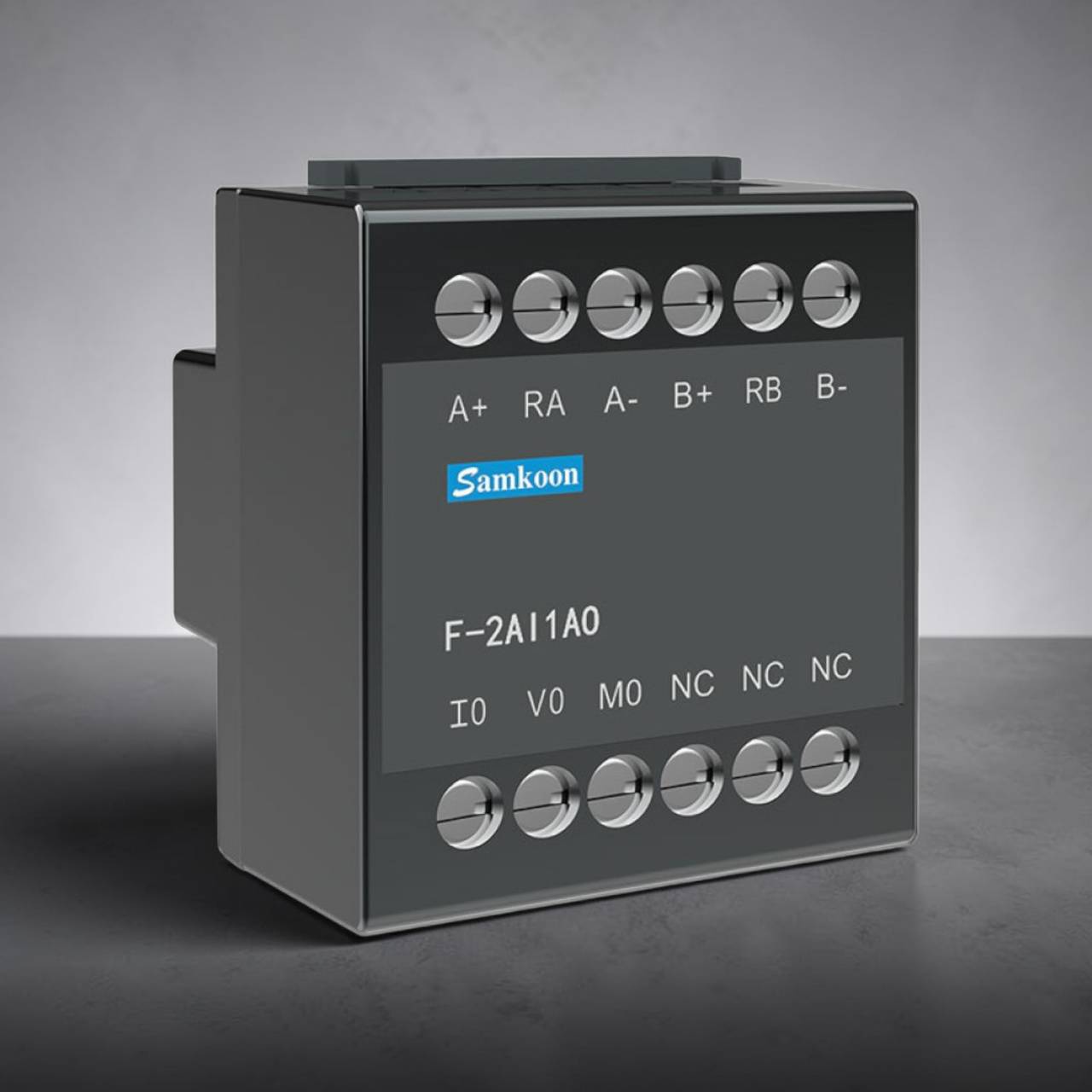

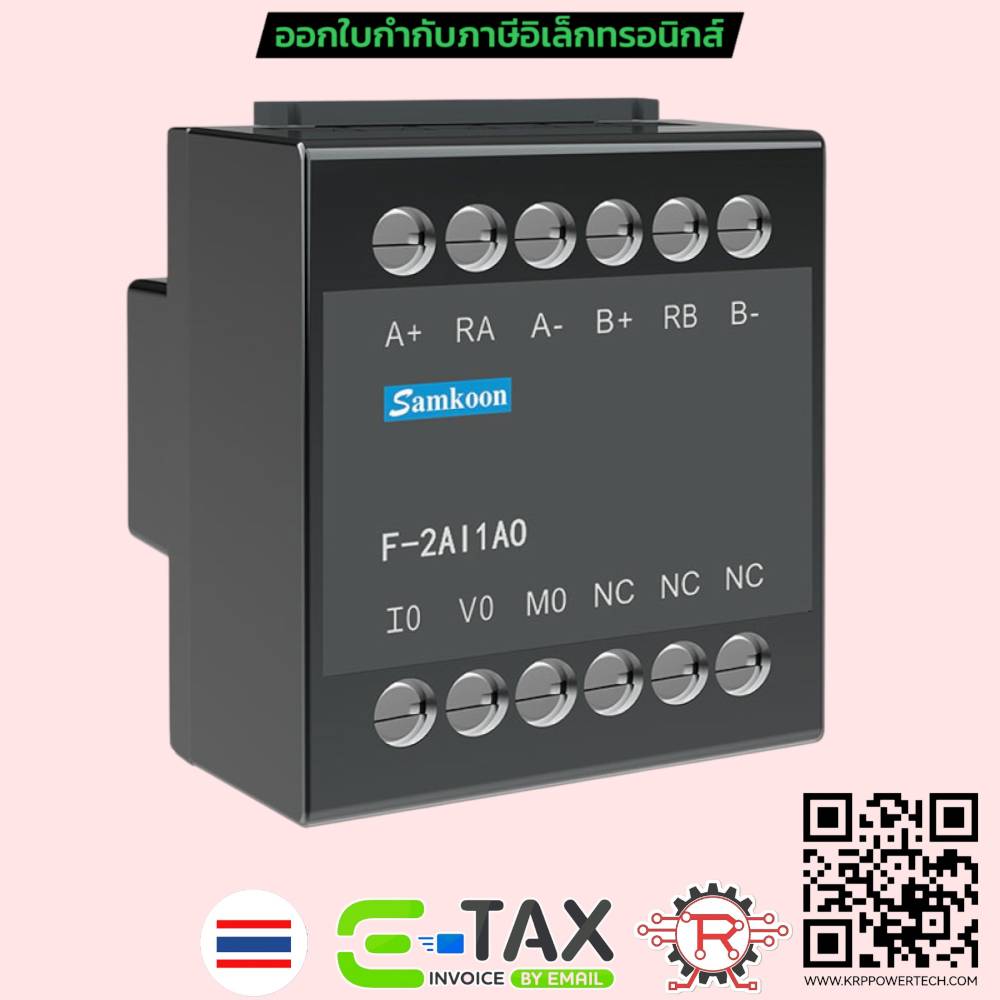

F-2AI1AO

Samkoon Extension Module Plugin Extension F-2AI1AO

Analog Inputs 2ch / Analog Output 1ch

Analog Inputs

- Channels: 2

-  Input Modes: Voltage (0–5V, 0–10V), Current (4–20mA)

-  Maximum Input Range: 12V or 30mA

-  Resolution:

0~5V: 1.25mV

0~10V: 2.5mV

4~20mA: 5μA

- ADC Precision: 16-bit

- Accuracy: ±0.1% comprehensive measurement precision

Analog Output

- Channels: 1

- Output Modes: Voltage (0–5V, 0–10V), Current (4–20mA)

- Resolution:

0~5V: 1.25mV

0~10V: 2.5mV

4~20mA: 5μA

- DAC Precision: 12-bit

- Accuracy: ±0.5% overall

- Load Resistance:

≥2KΩ @10V

≥2KΩ @5V

≤500Ω @20mA
